Combination of meters and data series

If you access the energy section by clicking on the electricity, water, gas, heat or cold buttons, you can view the data series together with the meters for each energy. You can only view multiple data series together with meters if the data series have the same unit. You cannot view binary data series here.

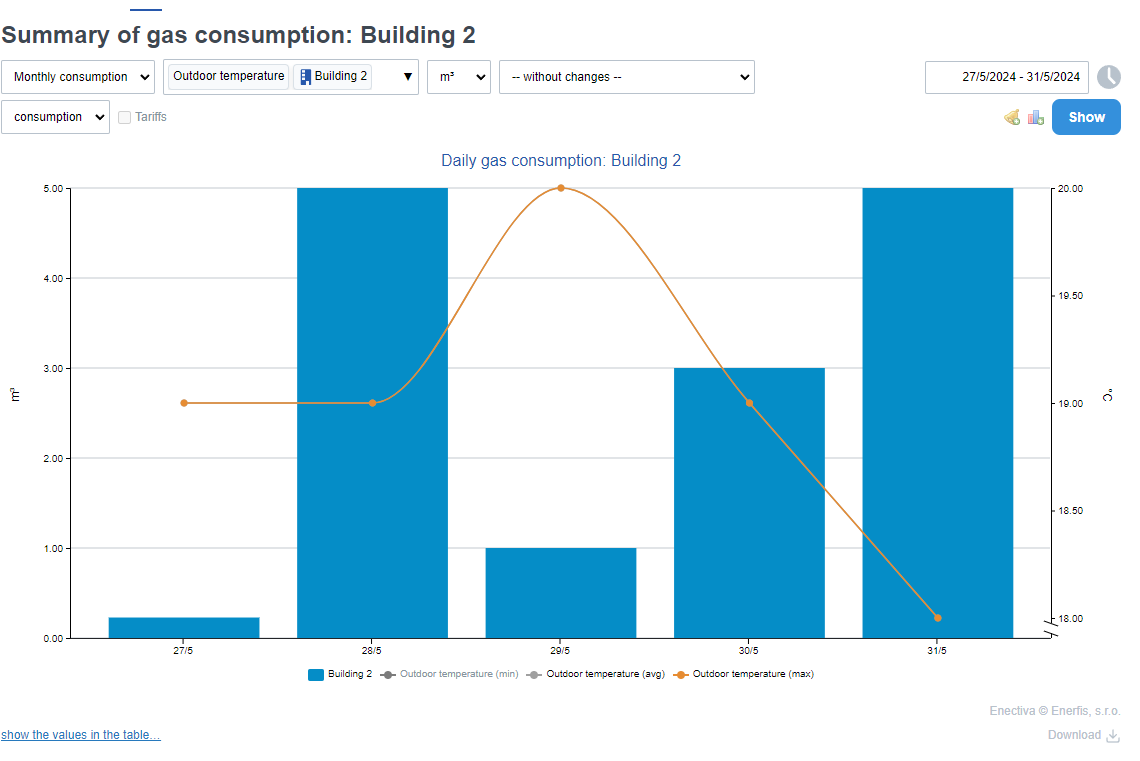

Example: by displaying the building's gas consumption and the outside temperature together, you can easily see if the heating control is set correctly and thus avoid unnecessary waste. To view the joint flow, go to the "gas" tab, choose "monthly consumption" and select the building, or the meter and data series measuring the outside temperature from the selection box. Finally, choose a time range and display with the View button.

Another possibility of combining data series and meters is to display consumption or costs converted to different building parameters.

Energy to parameter or data series conversion

As mentioned in the Parameters chapter, it is possible to display energy consumption or energy costs in the form of consumption/cost per unit. The unit of conversion can be taken from the entity parameter or data series can be used. From existing data series templates, it is possible to use units produced (products) or day rates (heat and cold), for example. Of course, the user can create his own data series template.

If the building has an assigned data line that monitors the outdoor temperature, the day rates are calculated automatically. But it is necessary to fill in the data for the dayrates in the Area or property tab.

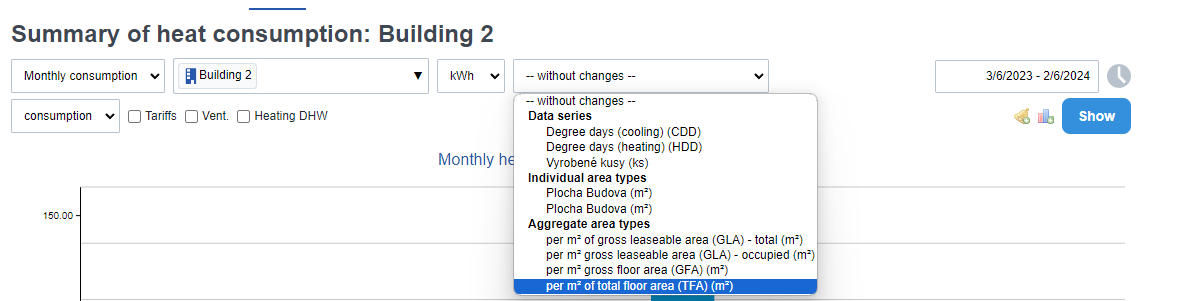

Example: i have set the TFA parameter in the technical data. I can go to Statistics -> Heat and see how much energy is used per square meter of the total heated area. From the menu in the top bar next to the unit selection, I click on one meter2 of total floor area (TFA) and press View.
